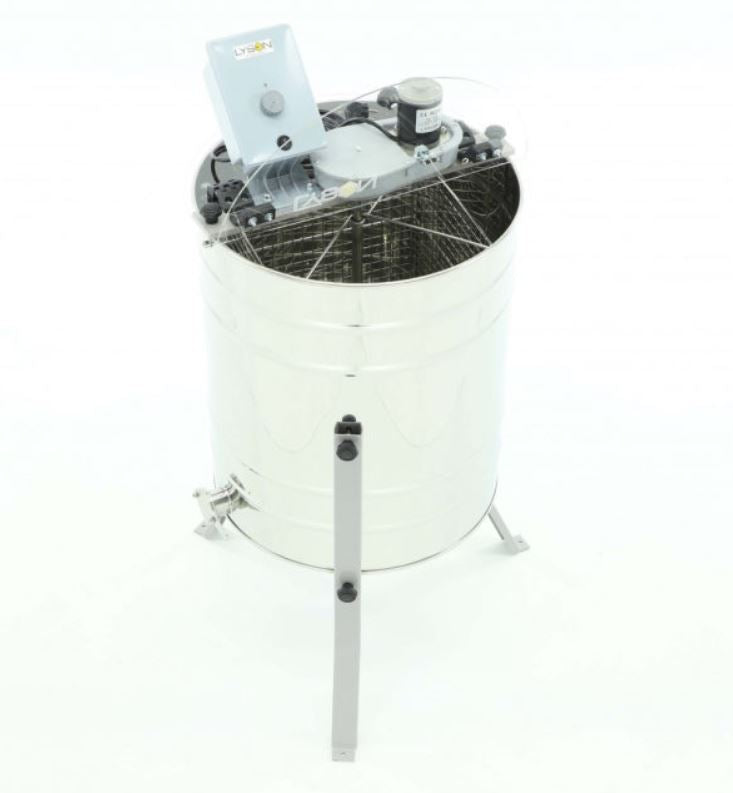

This motorized extractor was developed to be an upgrade from the standard 4 frame extractor we offer. It extracts frames faster due to its larger drum diameter, and can also extract four deeps at a time instead of two. The small dimensions of this extractor make it easy to move around the honey house! It can extract 4 deeps or mediums, or 8 shallows, at a time. Comes in a box made for easy self-assembly.
Features a tangential extracting drum with universal wire basket. The drum, constructed of 24 gauge stainless steel, has a conical bottom to drain out the extracted honey without tipping.
Product Specifications:
- Drum Diameter: 20" (500mm)
- Drum Height: 23 3/4"
- Overall Drum Height: 37 1/4"
- 1 1/2" Plastic Honey Gate
- Clearance below Honey Gate: 13 1/4"
- Basket Height: 17 1/2"
- Basket Width: 13"
- Power Supply: 120VAC
- Motor: 120 Watt
- Some assembly required
- Unit weight empty: 45 pounds
